The knobs
There are many
knobs
and buttons on the ultrasound machine. Every machine is a little bit different. This lesson will describe the function of the most common knobs and buttons.
Gain
In ultrasound,
gain
= sound volume, plain and simple. Think of a stereo where the volume is too loud. The music gets distorted and you can't really hear the music very well. If the volume is too low, you can't hear it. Too loud and too quiet are both not very good.
Let's put this into "ultrasound" perspective. When the ultrasound probe hears it's own echo (the reflected sound), it will produce a white image on the screen. If it cannot hear anything, the screen is all black. If the volume of the echo is too loud, then the screen is too white and the features gets distorted; the greys and blacks get turned into white and everything is white. Another easy way to think of gain is
brightness
.
So quick summary:
if gain is
too high, the image is too white
(over gain)
if gain is
too low, the image is too black
(under gain)
best gain is set to show white, grey and black images clearly
Gain is appropriate
Gain is too high (too white)
Gain is too low (too dark)
You have nothing to gain by turning the gain up too far!
Some machines have a few additional settings for gain:
Near gain
knob will adjust only the
top half
(the half that is
nearest
the probe)
Far gain
adjusts the
bottom half
(that is
furthest
from the probe)
Near and far gain are useful because sometimes the deeper (far) parts of the image are
darker because of attenuation
, so being able to brighten up only the deep parts of the image is helpful.
Here are some terms that are important about how black or how white the image is on the screen:
echogenic
means a structure will show up white on ultrasound
anechoic
means that the structure will be totally black (like liquid)
hyperechoic
means the structure will be extra white (like bone)
hypoechoic
means the structure will show up, but be more black
Depth
Depth

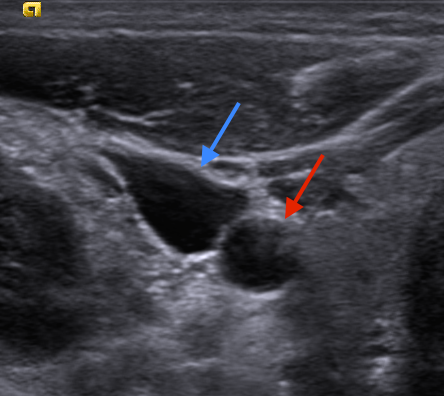

defines how many centimeters (cm.) deep the image is. There is a depth indicator on the side of the screen so you can see exactly how many cm. deep a structure is. The following images are intended to visualize the artery (red arrow) and vein (blue arrow). The first image shows optimal depth: the entire structure(s) of interest are 100% in view and there is not excess depth below the structures.
Depth is appropriate
Depth too deep (images too small)
The vessels are quite
small on the screen
. If the depth was reduced, the vessels would appear larger on the screen.
Too shallow (vessels not completely seen)
The artery and vein are both partly
cut off by the bottom
of the screen.
There are other buttons on the ultrasound machine that you can probably ignore for now if this is your very first time playing with the machine. However, so that you don't feel like we are leaving you out, here is a quick description of some of these other buttons and knobs:

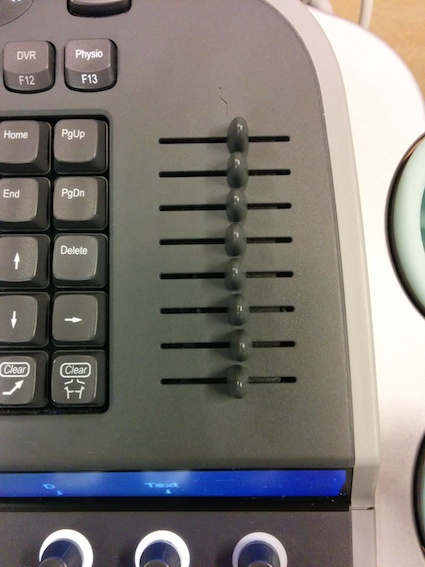

Time-Gain Compensation
: this is
another form of gain
. It is like the near and far gain we already told you about but instead of dividing the screen into 2 sections, it is divided into multiple sections and you can control each section. You probably will never need to adjust the screen in this much detail, but it can be helpful if a monkey was playing with the ultrasound machine before you used it and all the TGC buttons are pushed all the way to the left (too black) or right (too white), you can be smart enough to put them back in the middle.
All in the middle. Looks good!
TGC on
far left
. Image too black.
TGC on
far right
. Image too white.
Remember we talked about attenuation? This is loss of energy of your ultrasound signal as it penetrates into deeper tissue. If you are finding that your
far field image is too black
, then you could adjust lower TGC buttons in the following way to make the deeper structures more white:

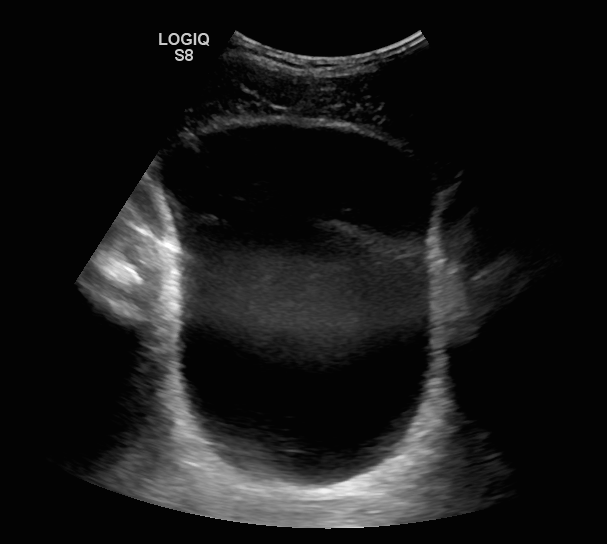

Here is an example where someone came along and moved
one of the TGC settings to the right
, creating a white band. Can you see it?
Focus
: do you remember in the last lesson we told you about
axial resolution
? If you forgot, axial resolution differentiates 2 structures that are
2 different distances
away from the probe. In contrast,
lateral resolution
differentiates 2 images that are the
same distance from the probe
. The focus feature helps to optimize lateral resolution. However, there is a limitation: you can only set the focus at a single depth. You cannot "focus" on the entire image (otherwise we would just do that all the time and not build in a knob for it).
Reminder that
axial resolution depends on frequency (previous lesson)
, but
lateral resolution depends on the focus function.
